User Guide

What is the HDP?

The Heatwave Diagnostics Package (HDP) is a collection of Python tools for computing heatwave metrics and generating summary figures. Functions can be imported in Jupyter notebooks and Python scripts or called in the terminal using the command line interface (CLI). All data uses xarray data structures and can be saved to disk as either Zarr stores (default) or netCDF datasets. Summary figures can be generated to describe the output and can be saved to disk in Jupyter notebooks.

The HDP workflow follows three steps:

  1. Format both a baseline and test measure of heat

  2. Generate an extreme heat threshold from the baseline

  3. Compute heatwave metrics by comparing the test measure against the baseline threshold

Throughout this guide, “baseline” refers to a measure of heat that is used to generate the threshold values from. Threshold values are defined as a percentile of all baseline values for each day of the year (see Threshold Calculation for more details). The “test” measure is compared against the threshold values to calculate hot days (days that exceed the threshold). Finally, the “heatwave definition” refers to an integer-sequence that describes what patterns of hot days over time are considered heatwaves. The span of different measures, thresholds, and definitions defines the “heatwave parameter space.”

Statement of Need

Existing tools used to quantify heatwave metrics (such as ehfheatwaves, heatwave3, nctoolkit) were not designed to sample large sections of the heatwave parameter space. Many of these tools struggle to handle the computational burden of analyzing terabyte-scale datasets and do not offer a complete workflow for generating heatwave diagnostics from daily, gridded climate model output. The HDP expands upon this work to empower the user to conduct parameter-sampling analysis and reduce the computational burden of calculating heatwave metrics from increasingly large model output.

Installation

The HDP can be installed using PyPI. You can view the webpage here.

$ pip install hdp-python

Quick Start

Below is example code that computes heatwave metrics for multiple measures, thresholds, and definitions from sample data generated by the HDP. Heatwave metrics are obtained for the “warming” data by comparing against the thresholds generated from the “control” data.

import hdp
import numpy as np

output_dir = "."

sample_control_temp = hdp.utils.generate_test_control_dataarray(add_noise=True)
sample_warming_temp = hdp.utils.generate_test_warming_dataarray(add_noise=True)

baseline_measures = hdp.measure.format_standard_measures(
    temp_datasets=[sample_control_temp]
)
test_measures = hdp.measure.format_standard_measures(
    temp_datasets=[sample_warming_temp]
)

percentiles = np.arange(0.9, 1.0, 0.01)

thresholds_dataset = hdp.threshold.compute_thresholds(
    baseline_measures,
    percentiles
)

definitions = [[3,0,0], [3,1,1], [4,0,0], [4,1,1], [5,0,0], [5,1,1]]

metrics_dataset = hdp.metric.compute_group_metrics(test_measures, thresholds_dataset, definitions, include_threshold=True)
metrics_dataset.to_netcdf(f"{output_dir}/sample_hw_metrics.nc", mode='w')

figure_notebook = create_notebook(metrics_dataset)
figure_notebook.save_notebook(f"{output_dir}/sample_hw_summary_figures.ipynb")

sample_control_temp = sample_control_temp.to_dataset()
sample_control_temp.attrs["description"] = "Mock control temperature dataset generated by HDP for unit testing."
sample_control_temp.to_netcdf(f"{output_dir}/sample_control_temp.nc", mode='w')

sample_warming_temp = sample_warming_temp.to_dataset()
sample_warming_temp.attrs["description"] = "Mock temperature dataset with warming trend generated by HDP for unit testing."
sample_warming_temp.to_netcdf(f"{output_dir}/sample_warming_temp.nc", mode='w')

This code snippet is included in the HDP source code and can be executed via:

$ git clone https://github.com/AgentOxygen/HDP.git
$ cd HDP
$ python hdp/docs/sample_data/sample.py hdp/docs/sample_data/

The sample data, metric data, and summary figures are all saved to the specified hdp/docs/sample_data/ but this path can be changed as needed.

Example: Quick Start Walkthrough

In this section, we will step through each line of the Quick Start code snippet. This example can be completely reproduced using tools installed with the HDP, no extra downloads required!

First, we need a baseline temperature dataset to derive the threshold from and a test datasets to compare against. For unit testing, the HDP includes utility functions hdp.utils.generate_test_control_dataarray and hdp.utils.generate_test_warming_dataarray for generating mock datasets.

import hdp

sample_control_temp = hdp.utils.generate_test_control_dataarray(add_noise=True)
sample_warming_temp = hdp.utils.generate_test_warming_dataarray(add_noise=True)

The sample control temperatures are generated using the following equation over a time series \(t\):

\[y_1(t) = 20 + 2\sin{\left(2\pi \left(\frac{\beta + t}{365}\right)\right)}\]

Where \(\beta = 270\) for the Northern hemisphere and \(\beta = 90\) for the Southern hemisphere. A latitudinal gradient is then applied for latitudes \(l\)

\[y_2(t) = y_1 - 10\frac{|l|}{90}\]

This essentially simulates a seasonally-varying temperature pattern that decreases with latititude. Optionally, a random noise filter can be applied to create variance across multiple definitions and pecentiles.

Before we can use the data with HDP functions, we must format the measures to convert units and variable names if necessary:

baseline_measures = hdp.measure.format_standard_measures(
    temp_datasets=[sample_control_temp]
)
test_measures = hdp.measure.format_standard_measures(
    temp_datasets=[sample_warming_temp]
)

Next, we define the range of percentiles to sample over and then derive the thresholds from the baseline (control) dataset:

import numpy as np

percentiles = np.arange(0.9, 1.0, 0.01)

thresholds_dataset = hdp.threshold.compute_thresholds(
    baseline_measures,
    percentiles
)

Once we have a threshold, we can specify the heatwave definitions to sample and then calculate the heatwave metrics across all thresholds and definitions:

definitions = [[3,0,0], [3,1,1], [4,0,0], [4,1,1], [5,0,0], [5,1,1]]

metrics_dataset = hdp.metric.compute_group_metrics(test_measures, thresholds_dataset, definitions, include_threshold=True)

By setting include_threshold=True, we ensure the output dataset stored in metrics_dataset contains the threshold dataset as well. This can result in very large arrays for larger datasets (particularly large ensmebles), so this is an optional parameter.

The output is a standard xarray.Dataset, so we can save as a netCDF file just as any other xarray.Dataset:

output_dir = "."
metrics_dataset.to_netcdf(f"{output_dir}/sample_hw_metrics.nc", mode='w')

Similary, the input datasets (control and warming) are xarray.DataArray which can be converted xarray.Dataset to save these as netCDF files for further inspection:

sample_control_temp = sample_control_temp.to_dataset()
sample_control_temp.attrs["description"] = "Mock control temperature dataset generated by HDP for unit testing."
sample_control_temp.to_netcdf(f"{output_dir}/sample_control_temp.nc", mode='w')

sample_warming_temp = sample_warming_temp.to_dataset()
sample_warming_temp.attrs["description"] = "Mock temperature dataset with warming trend generated by HDP for unit testing."

Finally, we can generate a figure deck for this dataset and save the resulting summary figures to a notebook:

figure_notebook = create_notebook(metrics_dataset)
figure_notebook.save_notebook(f"{output_dir}/sample_hw_summary_figures.ipynb")

Example: LENS2 Heatwave Diagnostics

In this example, we will produce heatwave metrics for one IPCC AR6 emission scenario, SSP3-7.0, run by the CESM2 climate model to produce a large ensemble called the “CESM2 Large Ensemble Community Project” or LENS2. The input data is not included in the HDP and LENS2 data must be downloaded to reproduce this section. We will explore the following set of heatwave parameters:

LENS2 Example Parameter Space

Parameter

Range/Values

Measures

tas, tasmax, tas_hi, tasmax_hi,

Thresholds

[0.9, 0.91, … 0.99]

Definitions

3-1-0, 3-1-1, 4-0-0, 4-1-1, 5-0-0, 5-1-1

Note that “_hi” refers to the heat index values for those variables. The model does not explicitly output heat index measurements, but we can calculate them from relative humidity (rh) using the HDP. For the thresholds, we select the range of percentiles from 0.9 to 0.99 with steps of 0.01. The heatwave definitions are defined as integer sequences that describe the following criteria (in order of integer placement):

  1. The minimum number of hot days to start a heatwave event.

  2. The maximum number of non-hot days that can follow the start of a heatwave event (creating a small break).

  3. The maximum number of subsequent events that can come after the break (and be considered part of the starting heatwave).

The definition codes may feel confusing at first, but they allow the user to capture many different “types” of heatwave and derive additional heatwave metrics without having to repeat the computationally-expensive analysis. We will investigate an example of derived metrics at the end of this section.

To fully utilize the performance enhancments offered by the HDP, we must first start up a Dask cluster to leverage parallel computation. This step is not automated because it requires system-specific configuration. If you are working on a single, local machine, a LocalCluster typically works best. However, if you are working on a distributed system at a supercomputing center, use the Dask configuration reccomended by your trusted HPC specialist. Below is an example configuration for use on a single-node with at least 30 cores and 200 (20x10 GB) of memory:

from dask.distributed import Client, LocalCluster
cluster = LocalCluster(n_workers=20, memory_limit="10GB", threads_per_worker=1, processes=True)
client = Client(cluster)

Once a Dask cluster is initialized, we then need to organize our data into xarray.DataArray objects. The entire HDP is built around xarray data structures to ensure ease of use and remain agnostic to input file types. Since we are working with a large ensemble, we need to make sure to concatenate the ensemble members along a “member” dimension. If we weren’t using a large ensemble (a single long-running simulation for example), we would just omit this step. To read data from disk, we can use the xarray.open_mfdataset function. Reading and post-processing data will look different from system to system, but the final format should be the same. Below is a list of xarray.DataArrays with the data structure for baseline_tasmax dataset visualized below:

baseline_tasmax
baseline_rh
ssp370_tasmax
ssp370_rh

baseline_tasmax

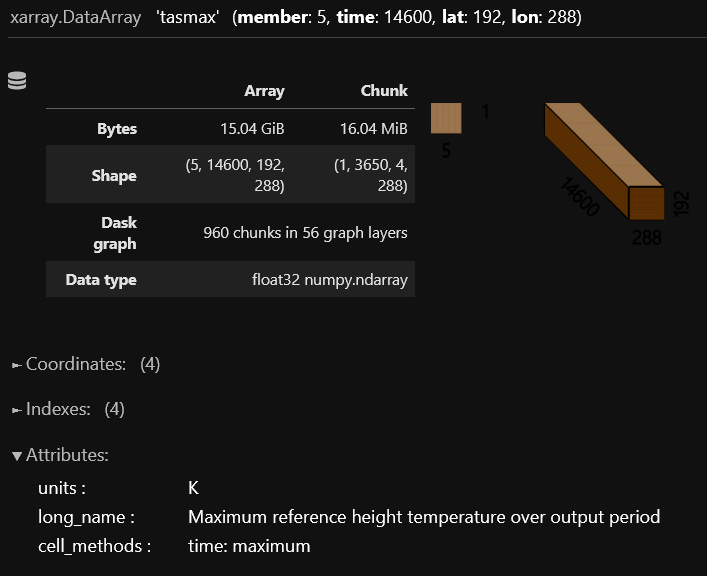

_images/tasmax_dataarray_example.png

The spatial coordinates for latitude and longitude should be named “lat” and “lon” respectively. The “time” coordinates should be decoded into CFTime objects and a “member” dimension should be created if an ensemble is being used.

To begin, we first need to format these measures so that they are in the correct units. This process will also compute heat index values using the relative humidity (rh) datasets.

baseline_measures = hdp.measure.format_standard_measures(temp_datasets=[baseline_tasmax], rh=baseline_rh)
ssp370_measures = hdp.measure.format_standard_measures(temp_datasets=[ssp370_tasmax], rh=ssp370_rh)

Now we can generate our range of thresholds from the baseline measures:

percentiles = np.arange(0.9, 1.0, 0.01)
thresholds = hdp.threshold.compute_thresholds(
    baseline_measures,
    percentiles
)

The DataArray structure is visualized below:

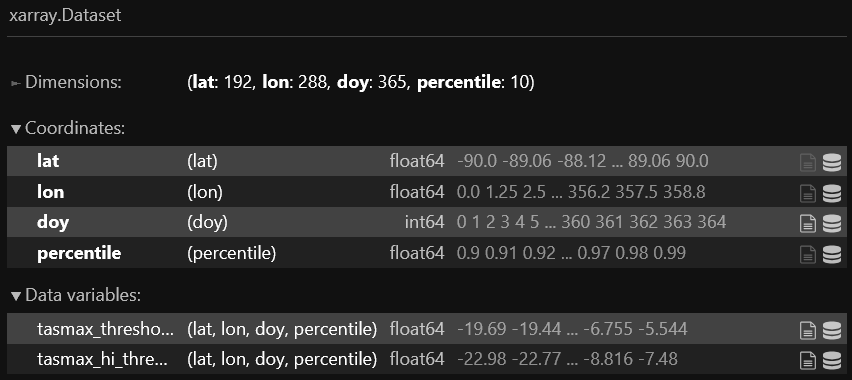

_images/threshold_dataarray_example.png

Next we can compute the heatwave metrics by comparing the SSP3-7.0 measures against the thresholds we generated from the baseline temperatures, using the definitions we defined earlier:

definitions = [[3,1,0], [3,1,1], [4,0,0], [4,1,1], [5,0,0], [5,1,1]]
metrics_dataset = hdp.metric.compute_group_metrics(test_measures, thresholds_dataset, definitions)

The metrics Dataset structure is visualized below:

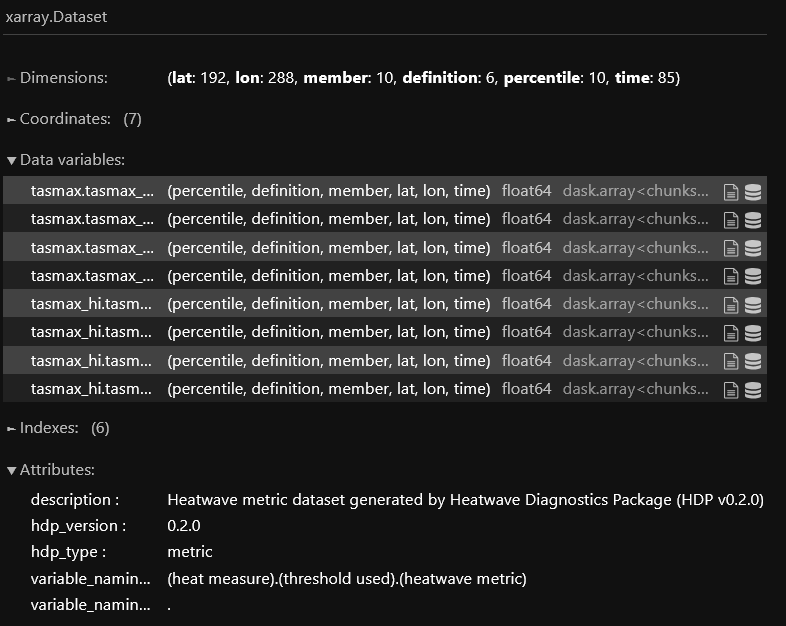

_images/example1_hw_metrics.png

Since we are connected to a Dask cluster, we can write the output to a zarr store in parallel. This finishes the data-generation portion of the HDP workflow and saves the results to disk for easier access in the future (otherwise we would need to rerun this heavy computation every time we wanted metrics):

metrics_dataset.to_zarr("lens2_ssp370_hw_metrics.zarr", mode='w', compute=True)
